Projector & Screen Hire

We have a range of projectors available for hire from 3000 lumen desktop projectors to 7000 lumen projectors for large format screens and larger events.

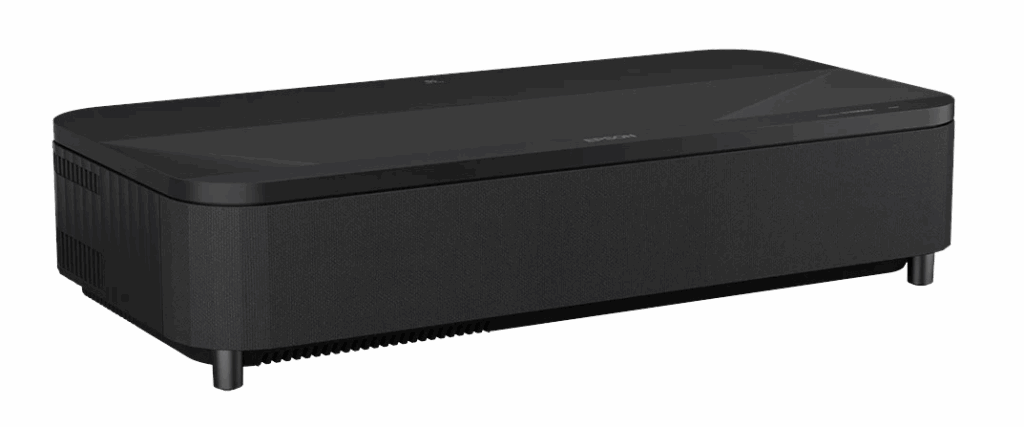

5000 lumen – Epson – Super UST Projector

This projector is ideal for large and small venues.  This Super Ultra Short Throw projector sits at the base of the projector screen allowing large screens to be used on small stages etc.

Can project on to our 2.4m and 3.05m fast fold screens.

Quote Image

Specifications

Technology

3LCD Technology, RGB liquid crystal shutter

LCD Panel

0.62 inch with C2 Fine

Image – Color Light Output

5,000 Lumen- 3,500 Lumen (economy) In accordance with IDMS15.4

White Light Output

5,000 Lumen – 3,500 Lumen (economy) In accordance with ISO 21118:2020

Resolution

1080p

Resolution Enhancement

4K enhancement

Aspect Ratio

16:9

On-Screen Pixel Count

2,073,600 dots (1,920 x 1,080) x 3

Contrast Ratio

Over 5,000,000 : 1

Light source

Laser

Laser Light source

20,000 hours Durability High, 30,000 hours Durability Eco

Colour Video Processing

10 Bits

2D Vertical Refresh Rate

192 Hz – 240 Hz

HDR support

HDR10, HLG

Optical – Throw Ratio

0.16 – 0.40:1

Zoom

Digital, Factor:1 – 1.35

Lens

Optical

Screen Size

80 inches – 160 inches

Projection Lens F Number

1.8

Projection Lens Focal Length

2.3 mm

Projection Lens Focus

Manual

Offset

7 : 1



Connectivity

Connectivity – Interfaces


USB 2.0-A (2x), USB 2.0
Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10
Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI in (2x), HDMI out,
HDBaseT, Miracast

Epson iProjection App


Ad-Hoc / Infrastructure

Network Protocol


HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Projector control
via: AMX, Extron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

7000 lumen – NEC Projector

This projector is ideal for larger venues and venues with high amounts of ambient lighting such as sports halls. We have mounting options for winch stands (upto 5m high) and to mount from truss.

The projector comes with a 12ft x 7ft (3.6m x 2.1m) rear projection fast-fold screen that can be flown or floor standing.

With the motorised Ultra Short Throw lense, this screen can be filled with the projector mounted 2.7m behind the screen.

Quote Image

Specifications

Type

LCD

Brightness [AL]

7000

Contrast

8000:1

Aspect Ratio

16:10

Native Resolution

1280 x 800 (WXGA)

Supported Resolutions

4096 x 2160 (4k); 2560 x 1600 (WQXGA); 2048 x 1080 (2k); 1920×1200 (WUXGA) – 640×480 (VGA); 1080i/50/60; 1080p/24/25/30/50/60; 720p/60; 720p/50; 576i/50; 576p/50; 480p/60; 480i/50

Connectivity

RGB (analog)

Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)

Digital

Input: 1 x DisplayPort; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
Output: 1 x HDBaseT supporting HDCP 2.2

Audio

Input: 1 x DisplayPort Audio support; 1 x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio support
Output: 1 x 3.5 mm Stereo Mini Jack (variable)

Control

Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet

LAN

1 x RJ45

USB

1 x Type A (USB 2.0 high speed)

3D Sync

Output: 1 x Mini DIN 3pin

7000 lumen Projector
7000 lumen Projector
Projector Features

3500 lumen – Projector Optoma W318ST

  • Short throw projector
  • Built-in 10W speaker
  • 28dB low noise
  • Bright 3500 lumens
  • Versatile connectivity

The W318ST is feature oriented projector, specially designed for business and education environments. This bright short throw projector has precision optics with an bright light source engineered to handle ambient light conditions. Essential capabilities such as USB power and network connectivity for more flexible operations are included.

Quote Image
